Tailor
Precision in folding, quality in finishing.

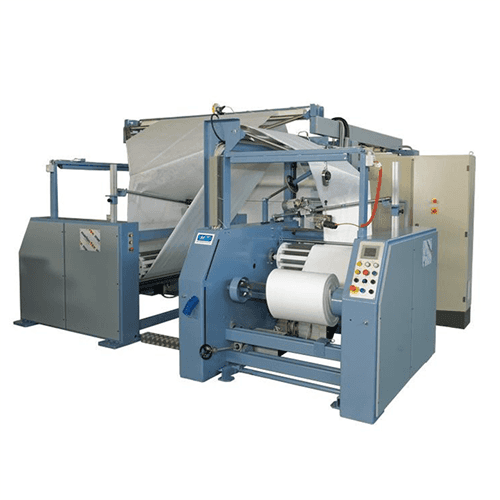

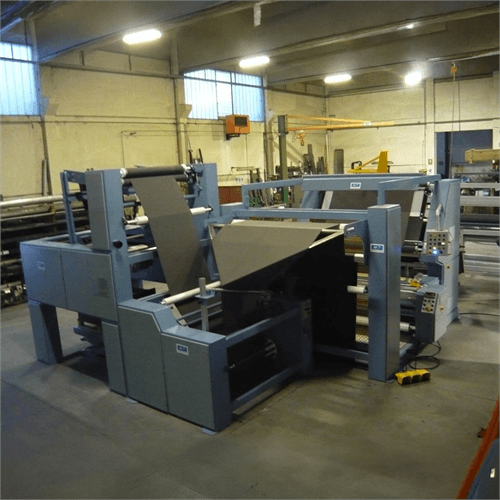

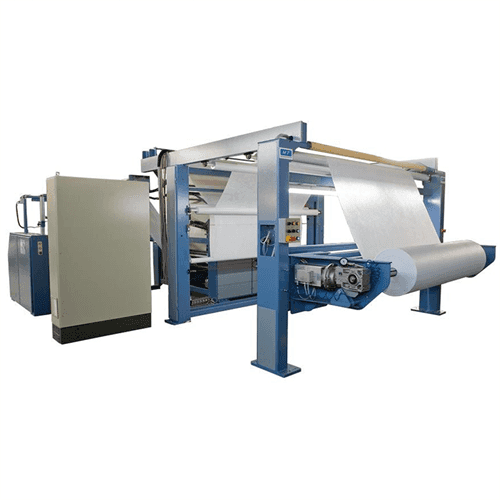

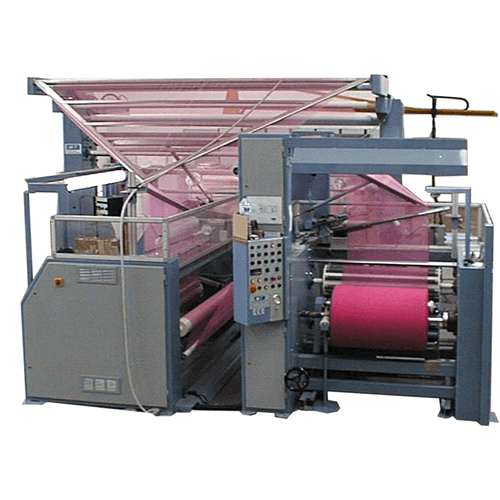

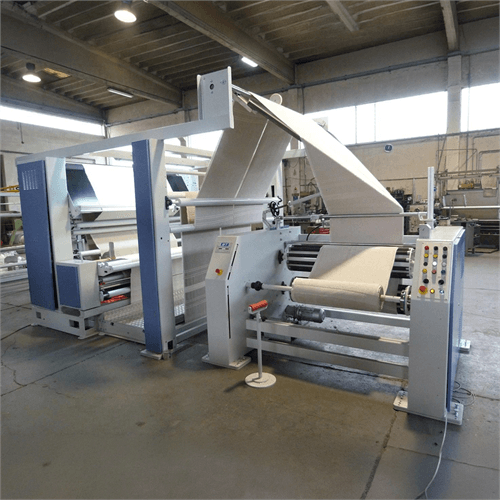

Doubling machine for folding and rewinding fabric. Available in 1:2 and 1:4 versions. Ensures precise fabric alignment and a perfectly centered fold, with the possibility of winding either into a roll or into a trolley box. Optional features: cutting unit, production data management software, and packaging.
Machine Overview
Precise Folding and Rewinding for Clean Fabric Presentation
Designed for accurate doubling, central folding, and controlled rewinding, with flexible output options and configurations suited to textile and nonwoven applications.
Speed from 5 to 60 m/min
Working width up to 3600 mm
Specifications

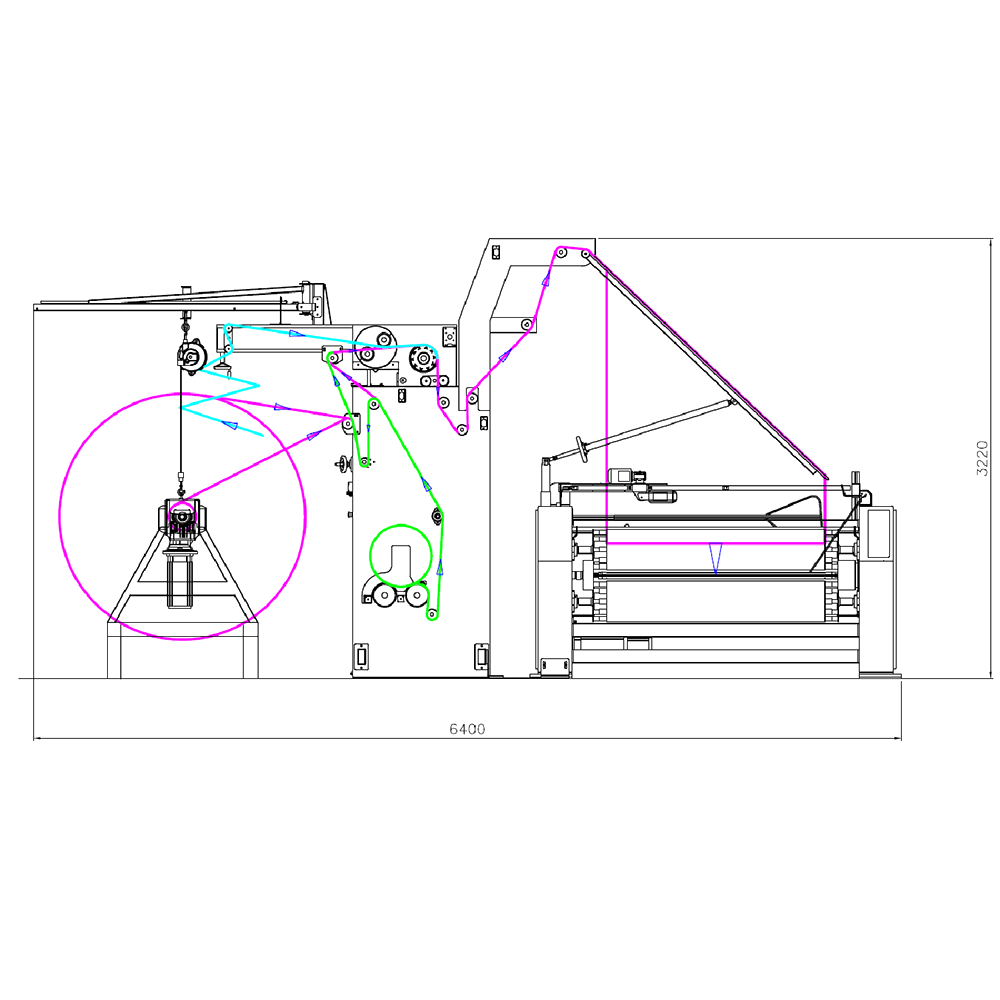

Built for Accurate Folding and Flexible Rewinding
Technical configuration focused on precise alignment, central folding accuracy, and versatile output handling for different fabric forms.
Versions1:2 / 1:4
Working widthUp to 3600 mm (up to 6200 mm for nonwovens)
Fabric entryLarge roll / small roll / plaited fabric
Fabric exitSmall roll / trolley box
Max output roll diameter450 mm
Max roll weight60 kg
Speed5 to 60 m/min
Control panelTouch screen
ConfigurationVarious optional features
Main functionDoubling, folding, and rewinding
