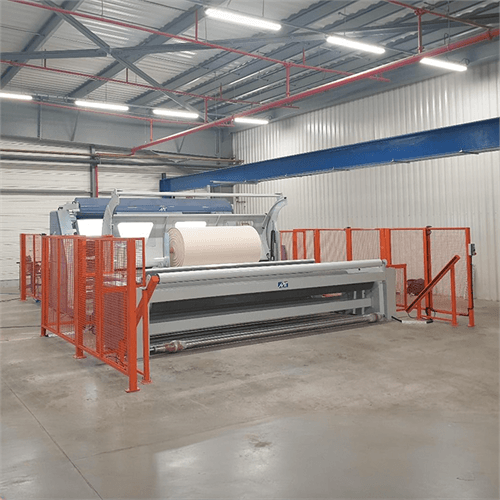

C4 XXL
When the fabric is XXL, inspection must rise to the challenge.
Machine for rear-operator tangential inspection and winding. Ideal for woven fabrics, technical fabrics, and nonwovens. Available with small-roll and large-roll output versions. Supports cold or thermal longitudinal slitting. Equipped with a backlit inspection table, elastic-cord or brush spreading cylinders, tangential winding on differentiated-speed cylinders, automatic roll unloading, automatic cutting, and an electronic meter counter with serial output. Optional features include production data management software, semi-automatic packaging, and fabric-cleaning brushes with bag-filter suction system. Combined axial and tangential winding is also available.
Machine Overview

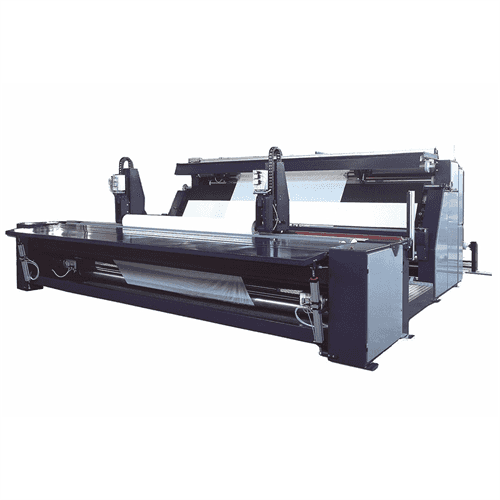

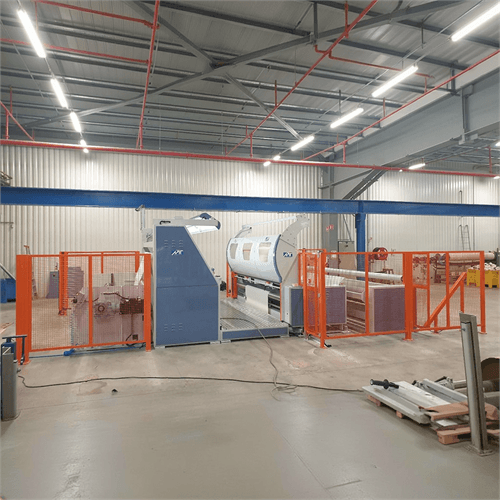

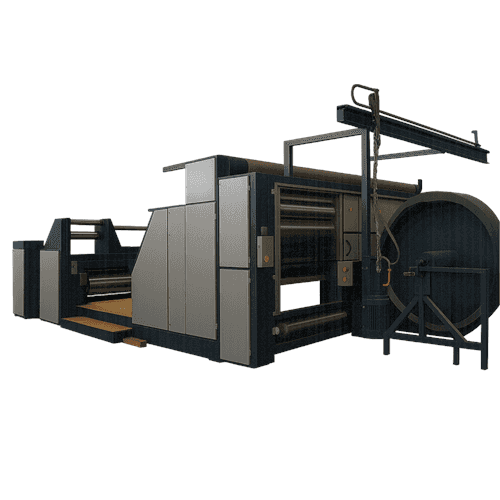

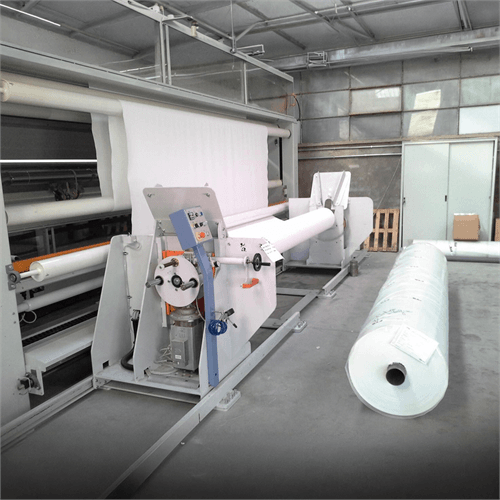

Heavy-Duty Inspection for Extra-Wide and Heavy Fabrics
Engineered for XXL materials, combining tangential and axial winding, large roll handling, advanced spreading systems, and optional cutting and cleaning solutions.
Speed from 5 to 60 m/min
Working width up to 5600 mm
Specifications

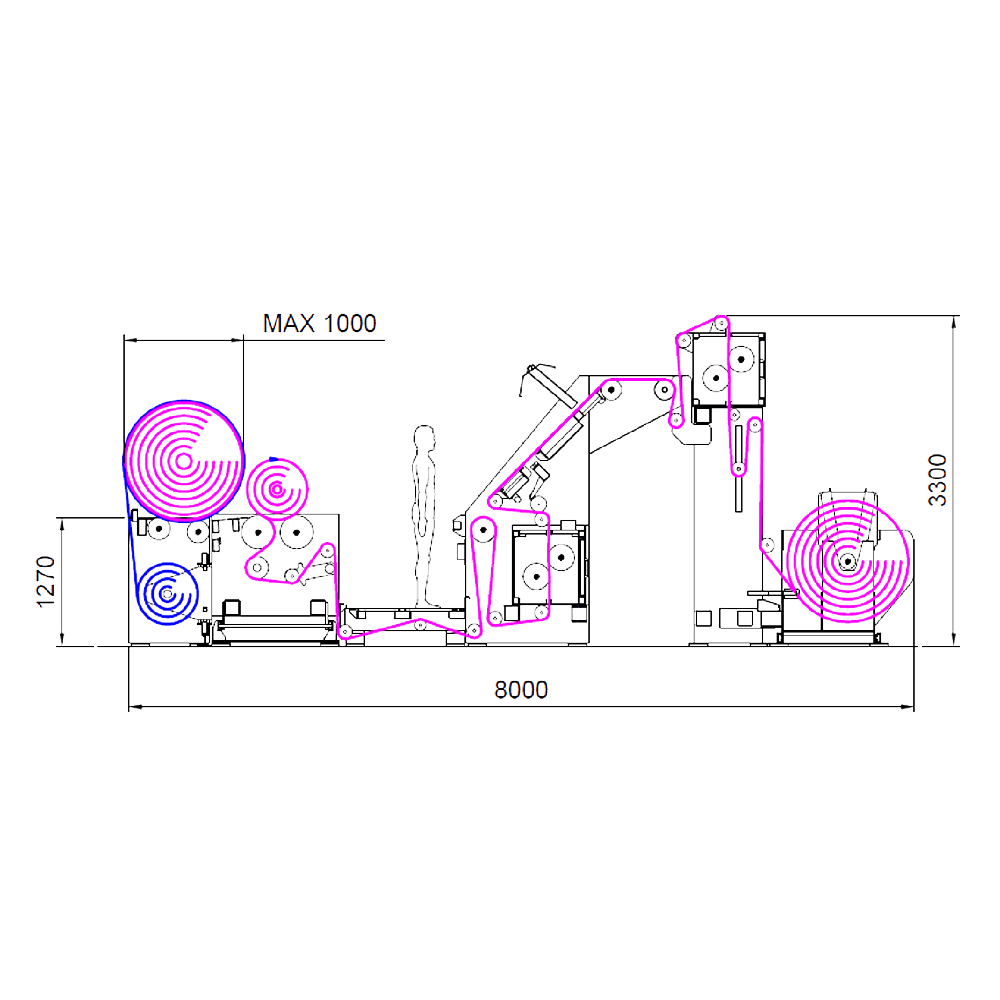

Built for XXL Widths and Heavy Rolls
Technical configuration optimized for large-format fabrics, heavy roll handling, and flexible output formats.
Working widthUp to 5600 mm
Fabric entryLarge roll / small roll
Fabric exitLarge roll / small roll
Max output roll diameter800 mm (max 1200 mm out of standard)
Max roll weight1500 kg
Speed5 to 60 m/min
Control panelTouch screen
ConfigurationVarious optional features
Winding systemTangential on differentiated-speed cylinders
Winding modeCombined axial and tangential winding
