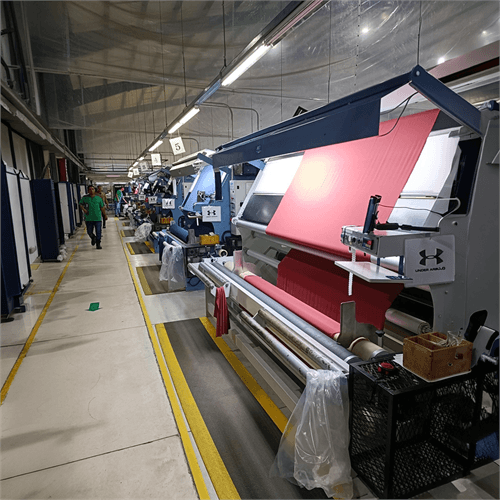

Pratica
Machine designed for finishing departments that require re-inspection and measurement of fabric coming from different finishing processes. Its compact structure and extremely simple fabric path ensure ease of use and fast operation. Roll-to-roll configuration. An electronic scale with serial output is available as an optional feature for weight data management.
Machine Overview

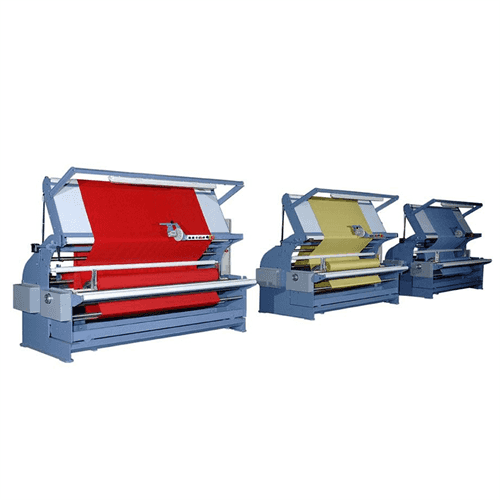

Compact Re-Inspection and Measurement Made Simple
Built for finishing workflows that need fast rechecking and measuring, with a compact layout, easy operation, and efficient roll-to-roll handling.
Speed from 5 to 60 m/min
Working width up to 2400 mm
Specifications

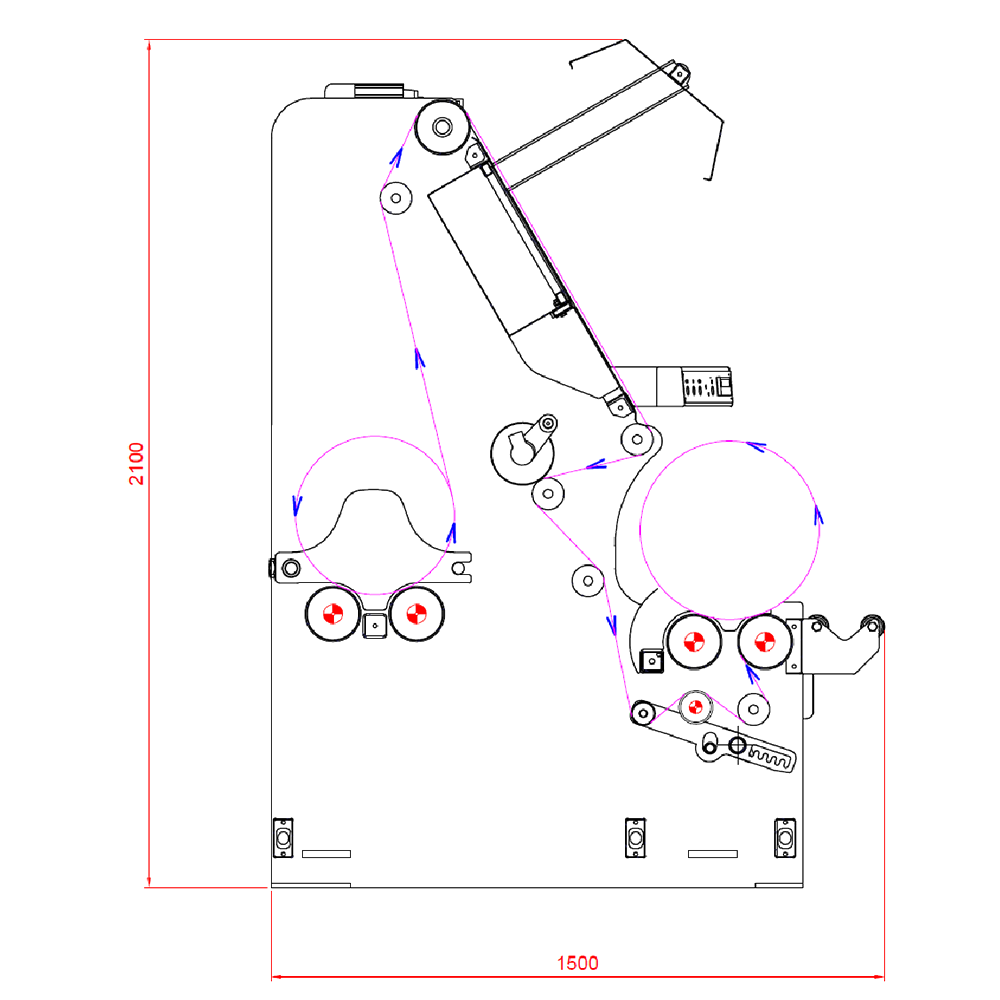

Built for Easy Roll-to-Roll Re-Inspection
Technical configuration focused on compact dimensions, simple operation, and reliable measurement for finishing departments.
Working widthUp to 2400 mm
Fabric entrySmall roll
Fabric exitSmall roll
Max output roll diameter450 mm
Max roll weight40 kg
Speed5 to 60 m/min
ConfigurationRoll-to-roll
StructureCompact design
Fabric pathExtremely simple
Optional weighing systemElectronic scale with serial output
