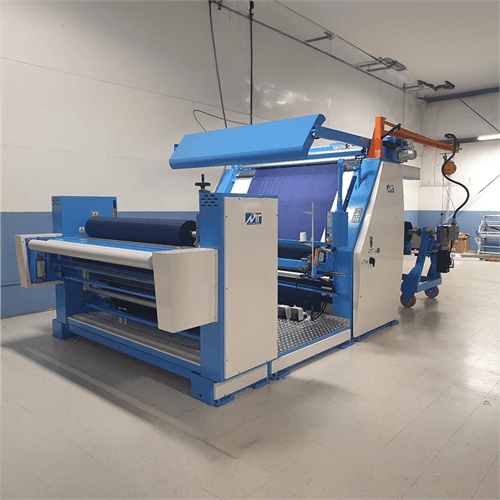

Mod C4
Machine for rear-operator tangential inspection and winding. Ideal for woven fabrics, technical fabrics, and nonwovens. Ergonomic controls and inspection table are designed to support the operator. A wide inspection table is available, with length up to 1800 mm in the special version. The inspection table features dual inclination for mending and stain-removal operations. Includes automatic roll unloading, automatic cutting, and an electronic meter counter with serial output. Optional features: longitudinal slitting, production data management software, taping, and packaging.
Machine Overview

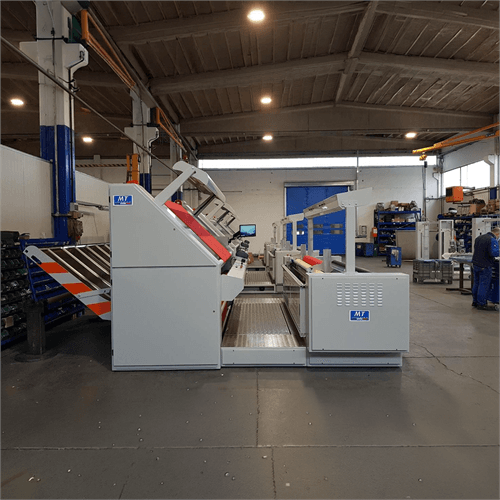

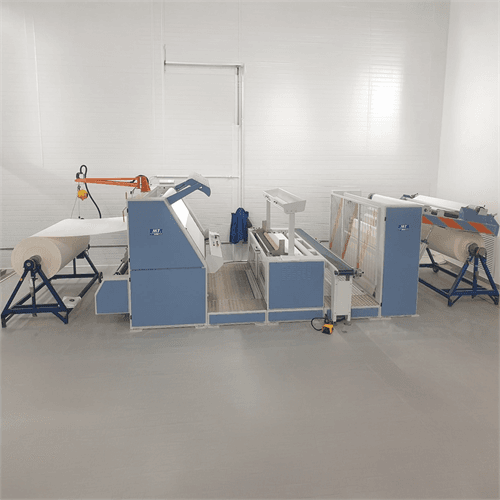

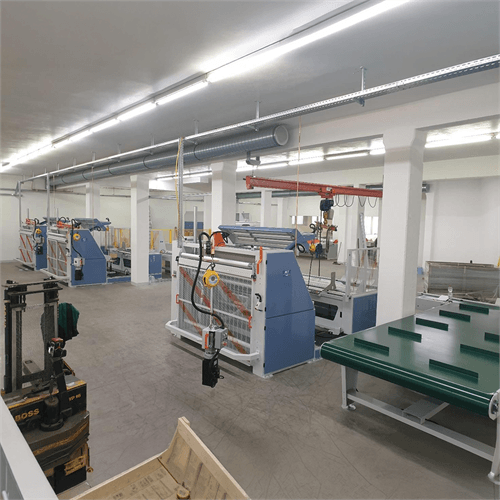

Tangential Inspection and Winding for Diverse Fabric Types
Built for woven fabrics, technical textiles, and nonwovens, with ergonomic operator control, wide inspection support, automatic roll unloading, and production-oriented optional add-ons.
Speed from 5 to 60 m/min
Working width up to 3600 mm
Specifications

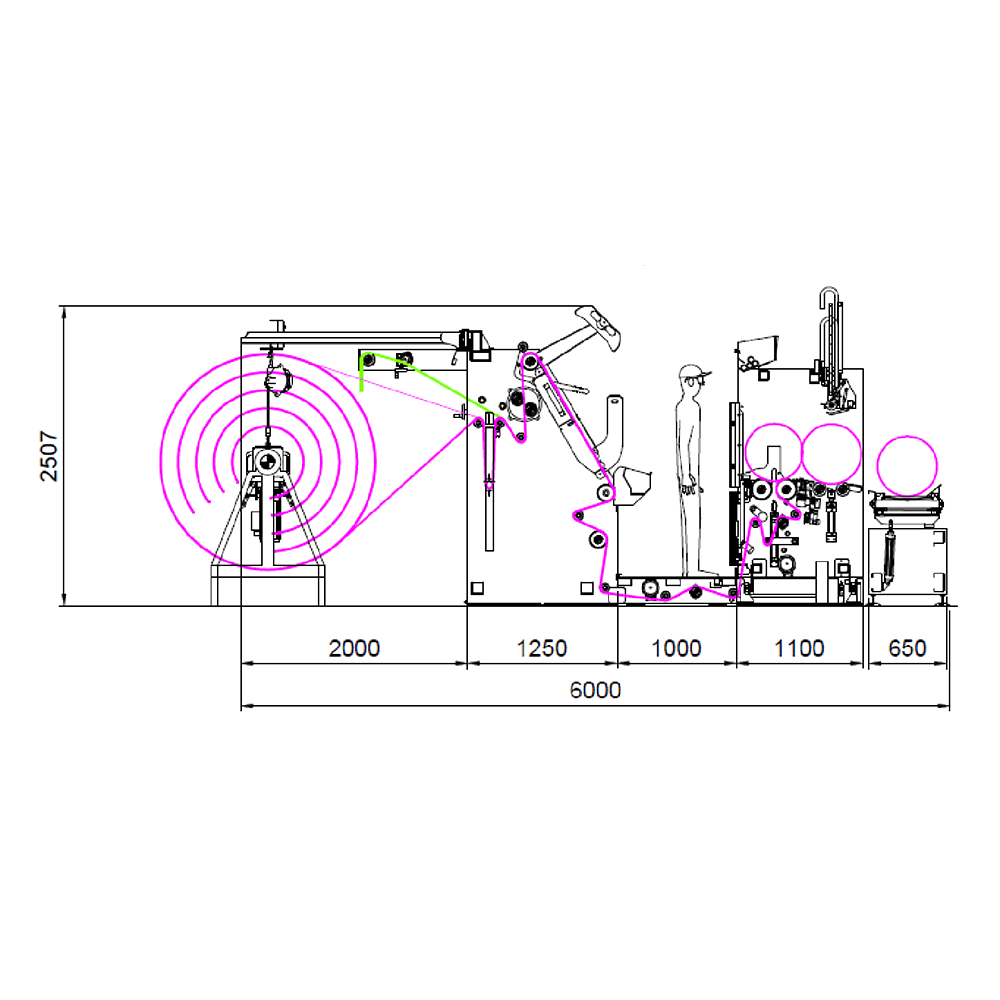

Built for Flexible Output and Operator Efficiency
Technical configuration for tangential inspection, multiple fabric entry and exit formats, and optional production-enhancing upgrades.
Working widthUp to 3600 mm
Fabric entryLarge roll / small roll / plaited fabric
Fabric exitLarge roll / small roll / plaited fabric
Max output roll diameter450 mm (max 800 mm out of standard)
Max roll weight200 kg
Speed5 to 60 m/min
Control panelTouch screen
ConfigurationVarious optional features
Inspection table lengthUp to 1800 mm in the special version
Inspection table modeDual inclination for mending and stain removal
