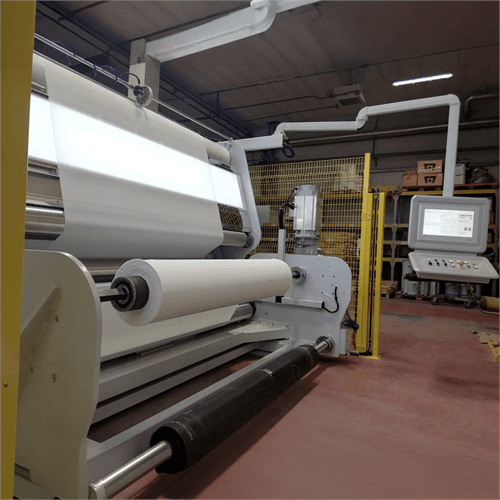

C5 AX
Machine for operator-side axial inspection and winding. Ideal for technical fabrics and plastic films. Selectable internal or external winding. Motorized mother-roll entry. Available with an elastic-cord or brush spreading cylinder. Electronic meter counter with serial output and automatic material cutting. Optional features: longitudinal slitting, cross cutting, trim recovery, production management software, automatic unloading, and packaging.
Specifications

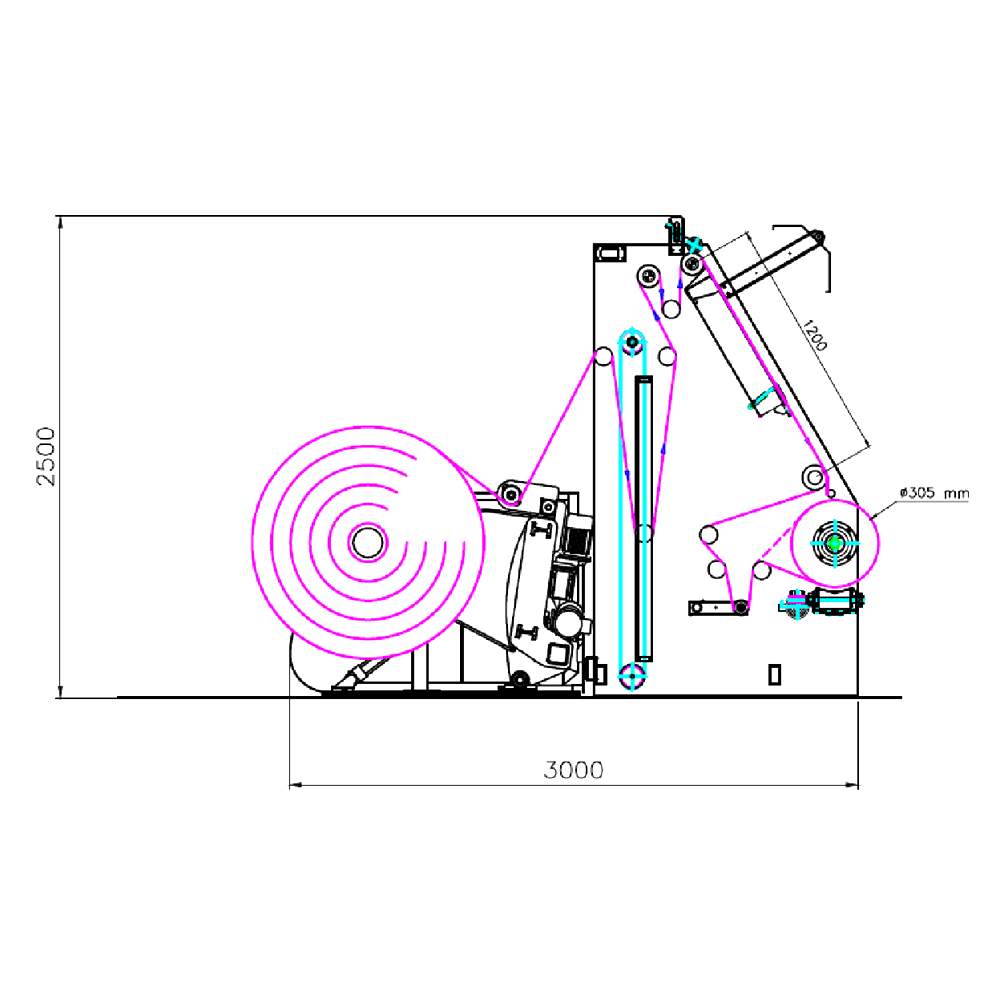

Built for Axial Control and Flexible Winding
Technical specifications for operator-side axial inspection, controlled winding, and conversion-ready processing of technical materials.
Working widthUp to 2600 mm
Fabric entryLarge roll / small roll
Fabric exitSmall roll
Max output roll diameter450 mm (max 800 mm out of standard)
Max roll weight200 kg
Speed5 to 60 m/min
Control panelTouch screen
ConfigurationVarious optional features
Winding modeSelectable internal or external
Material typeTechnical fabrics / plastic films
