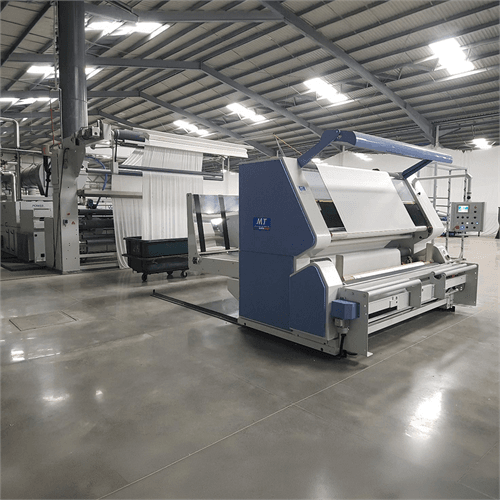

Verifica non-stop
Non-stop winding and inspection for finishing lines
Machine for non-stop winding and inspection at the exit of stenter frames, sanforizing machines, and compactors. Available in three models: NSK, C5, and C4. It can be configured with front-operator or rear-operator winding. Machine synchronization works without connections to the in-line machine. Electronic fabric overfeed prevents any type of tension, especially on knitted fabrics.
Machine Overview

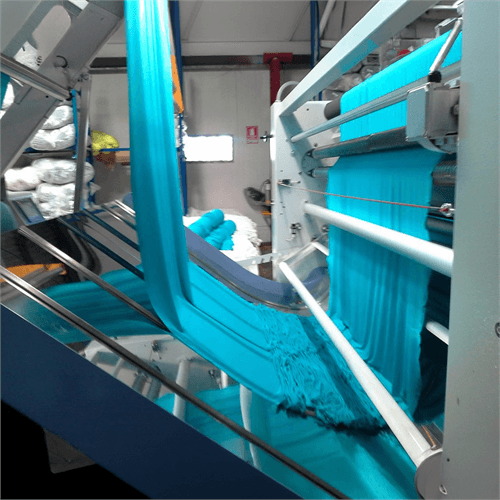

Continuous Inspection and Winding Without Tension
Designed for non-stop winding and inspection after finishing lines, with synchronized operation, backlit control, adjustable winding, and gentle handling for delicate fabrics.
Speed from 5 to 60 m/min
Working width up to 3600 mm
Specifications

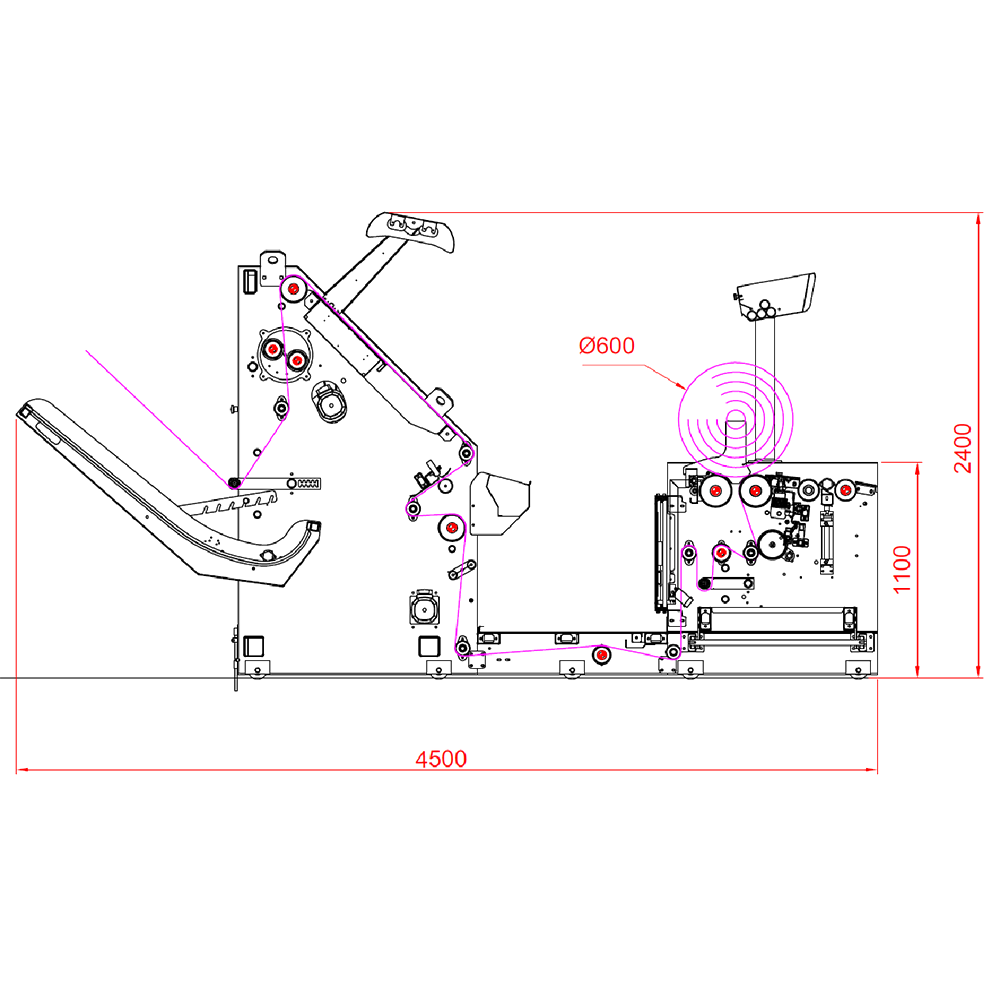

Configured for High-Flow Finishing Output
Built for continuous inspection and winding after finishing processes, with wide-format handling and flexible output configuration.
ModelsNSK / C5 / C4
Working widthUp to 3600 mm
Fabric entryJ-box / conveyor belt
Fabric exitRoll / plaited fabric
Max output roll diameter450 mm (max 800 mm out of standard)
Max roll weightFrom 20 to 200 kg
Speed5 to 60 m/min
Control panelTouch screen
Operator versionFront-operator or rear-operator winding
Machine versionTrolley-mounted version available
