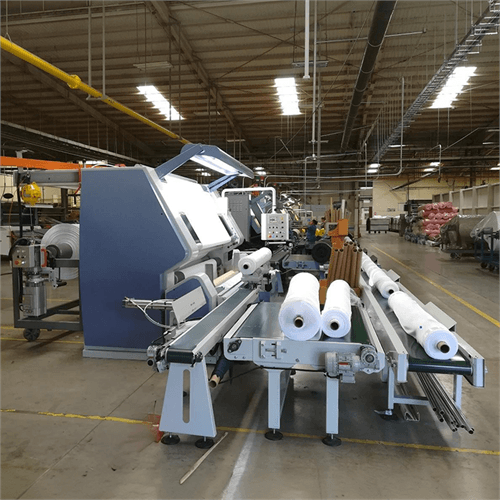

C5 Esamina
Relax the elastic. Enhance the quality
Machine for quality control of knitted fabrics from the operator side. Total absence of tension thanks to electronic relaxation and overfeed devices. Minimal fabric path helps avoid tension and is supported by the compact machine structure. Ergonomic controls and inspection table are designed for operator comfort and ease of use. No fabric path change is required when switching between large roll, plaited fabric, or small roll. Relax control and roll compactness are managed through the touch screen, with recipe-saving capability. Available with different motorized entries: plaited fabric, small roll, and large roll. Automatic connection of the axial unwinder to the trolley requires no manual intervention. Includes spreader rollers, electronic meter counter with serial output, and automatic fabric cutting. Optional features include variable-inclination and color-changing inspection table, packaging unit, weighing system, automatic roll unloading, and production data management software.
Machine Overview

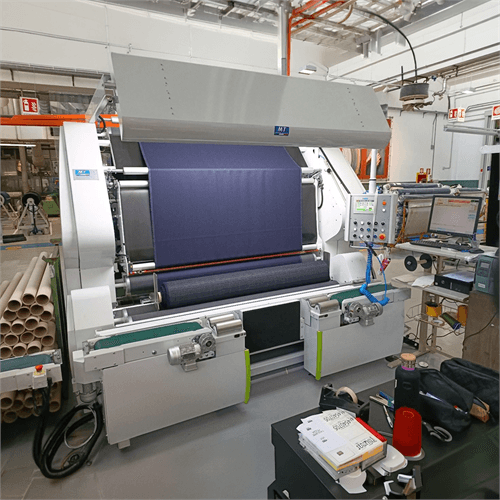

Knitted Fabric Inspection With True Tension-Free Control
Designed for high-quality inspection of knitted fabrics with electronic relax control, recipe management, flexible motorized entry systems, and smooth handling across different fabric formats.
Speed from 5 to 60 m/min
Working width up to 3600 mm
Specifications

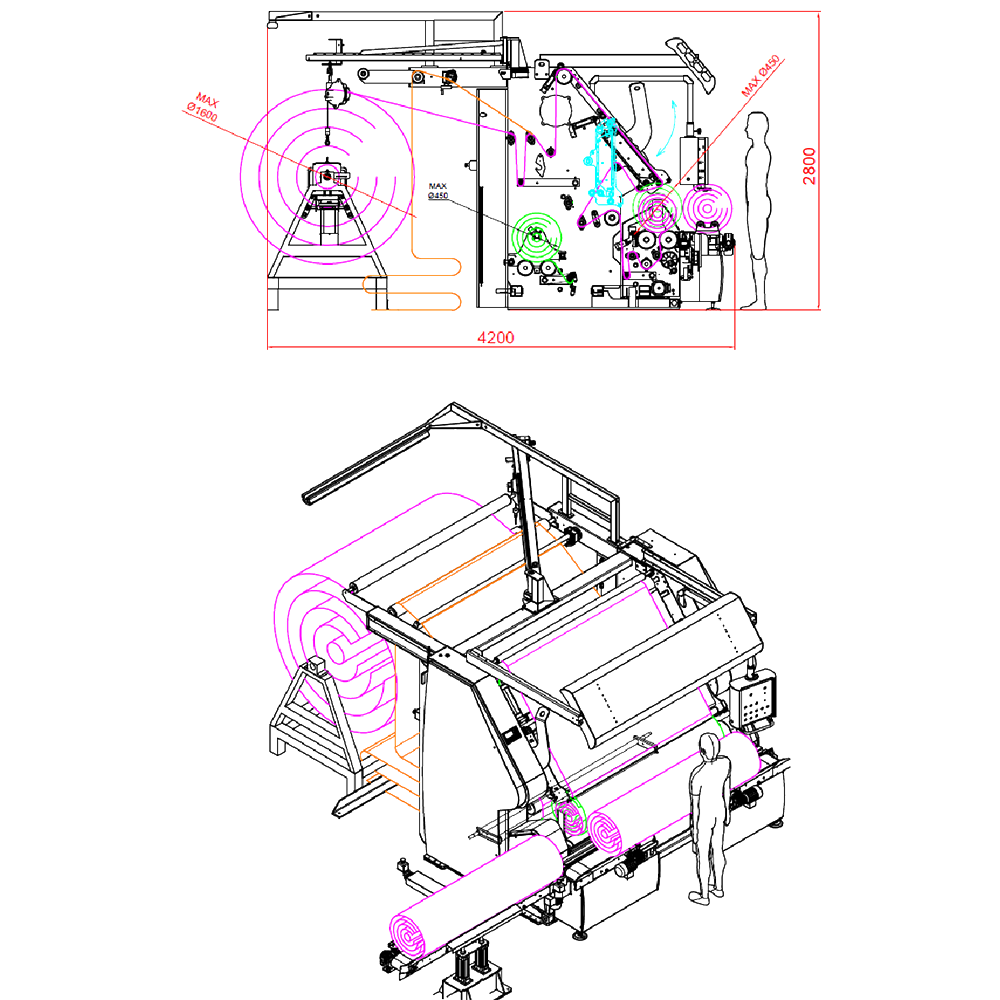

Built for Relaxed Knitted Fabric Inspection
Technical configuration focused on tension-free fabric control, ergonomic operation, and flexible handling for different input formats.
Working widthUp to 3600 mm
Fabric entryLarge roll / small roll / plaited fabric
Fabric exitSmall roll
Max output roll diameter450 mm (max 600 mm out of standard)
Max roll weight100 kg
Speed5 to 60 m/min
Control panelTouch screen
ConfigurationVarious optional features
Tension controlElectronic relax and overfeed system
Recipe managementSettings can be saved via touch screen
