Nsk Cut

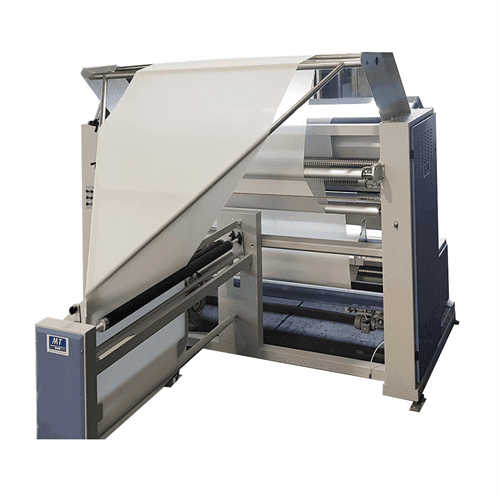

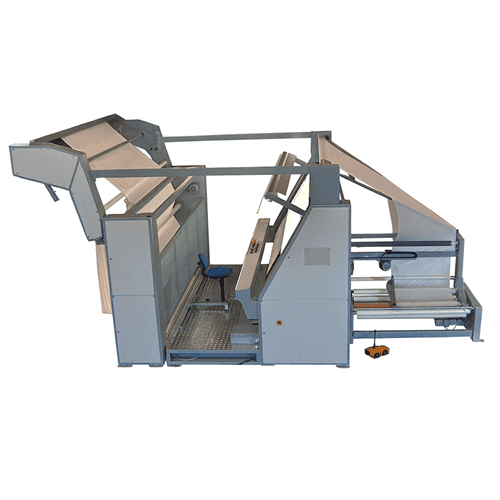

Machine designed to open and inspect greige tubular fabric. Available with output in small roll or plaited fabric format. Built for controlled inspection and flexible downstream handling, with optional cross cutting and optional weighing system.
Nsk Cut
Machine Overview

Opening and Inspection for Greige Tubular Fabric

Designed to open, inspect, and prepare tubular greige fabric with flexible output options and reliable control during early production stages.

Opening and Inspection for Greige Tubular Fabric
Speed from 5 to 60 m/min
Working width up to 2400 mm

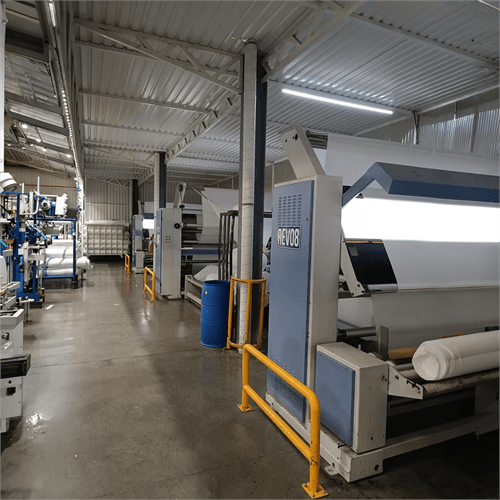

Opening and Inspection for Greige Tubular Fabric usage
Specifications

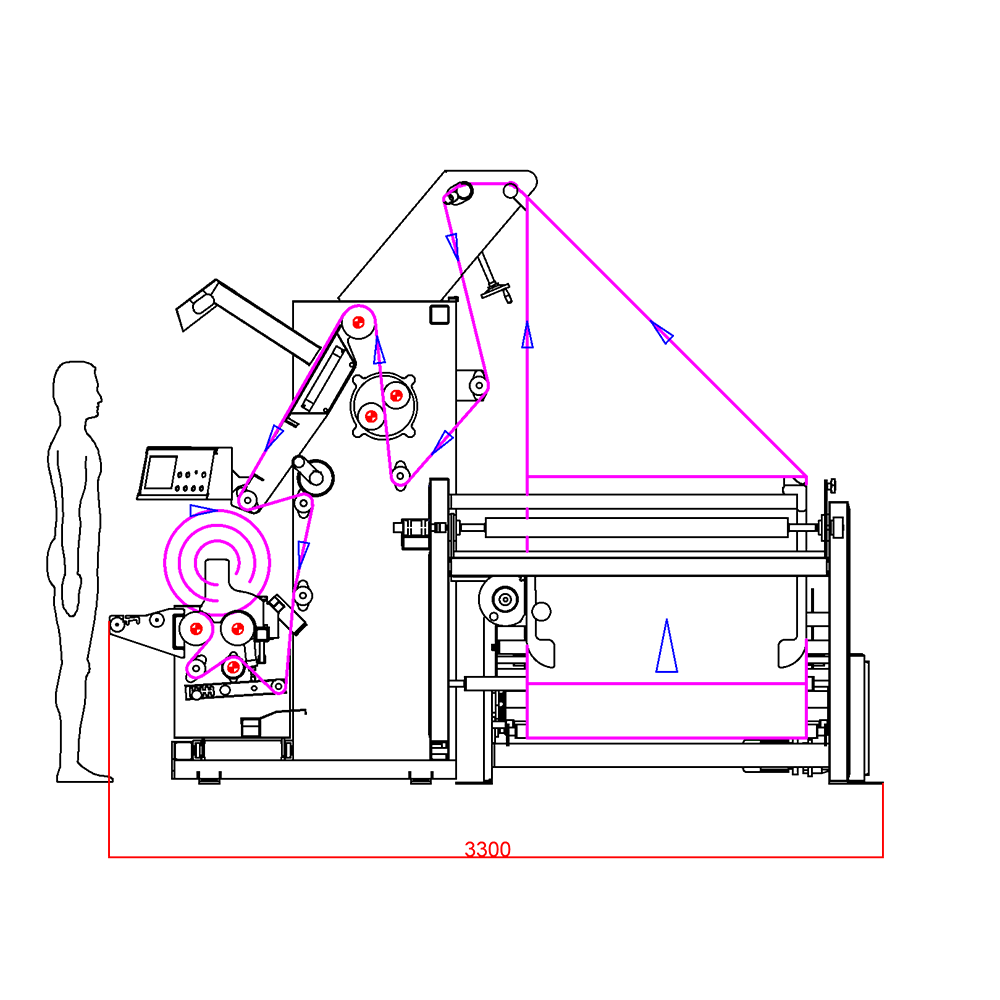

Built for Flexible Opening and Inspection

Technical configuration focused on controlled tubular opening, inspection visibility, and adaptable output handling.

Built for Flexible Opening and Inspection
Working widthUp to 2400 mm
Fabric entrySmall roll / plaited fabric
Fabric exitPlaited fabric / small roll
Max input roll diameter600 mm
Max output roll diameter450 mm
Speed5 to 60 m/min
ConfigurationVarious optional features
Main functionOpening and inspection of greige tubular fabric
Optional cuttingCross cutting unit
Optional weighingScale
