Turbo Flow
Devours rolls. Fires out production. 800 kg/hour.
Batching machine for fabric plaiting. Designed for high-speed production with complete absence of tension on the material. Features automatic return to facilitate sewing operations. Recorded production reaches 700 to 800 kg per hour with a single operator. Also available in a 2400 mm working-width version for reprocessing finished rolls or for double-rope applications.
Machine Overview

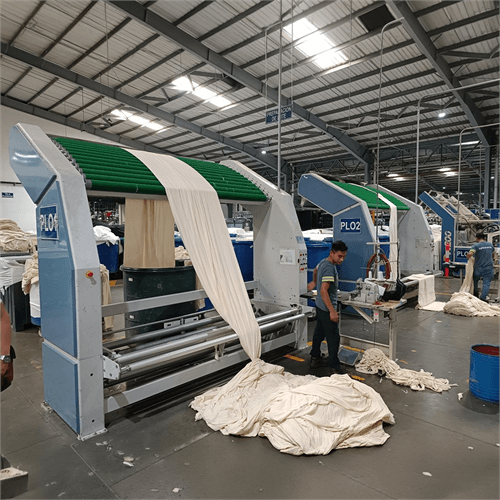

High-Speed Tension-Free Fabric Plaiting
Built for rapid roll-to-plaited-fabric processing, with zero material tension, automatic return for easier sewing, and outstanding hourly production with a single operator.
Speed up to 150 m/min
Working width up to 1200 mm
Specifications

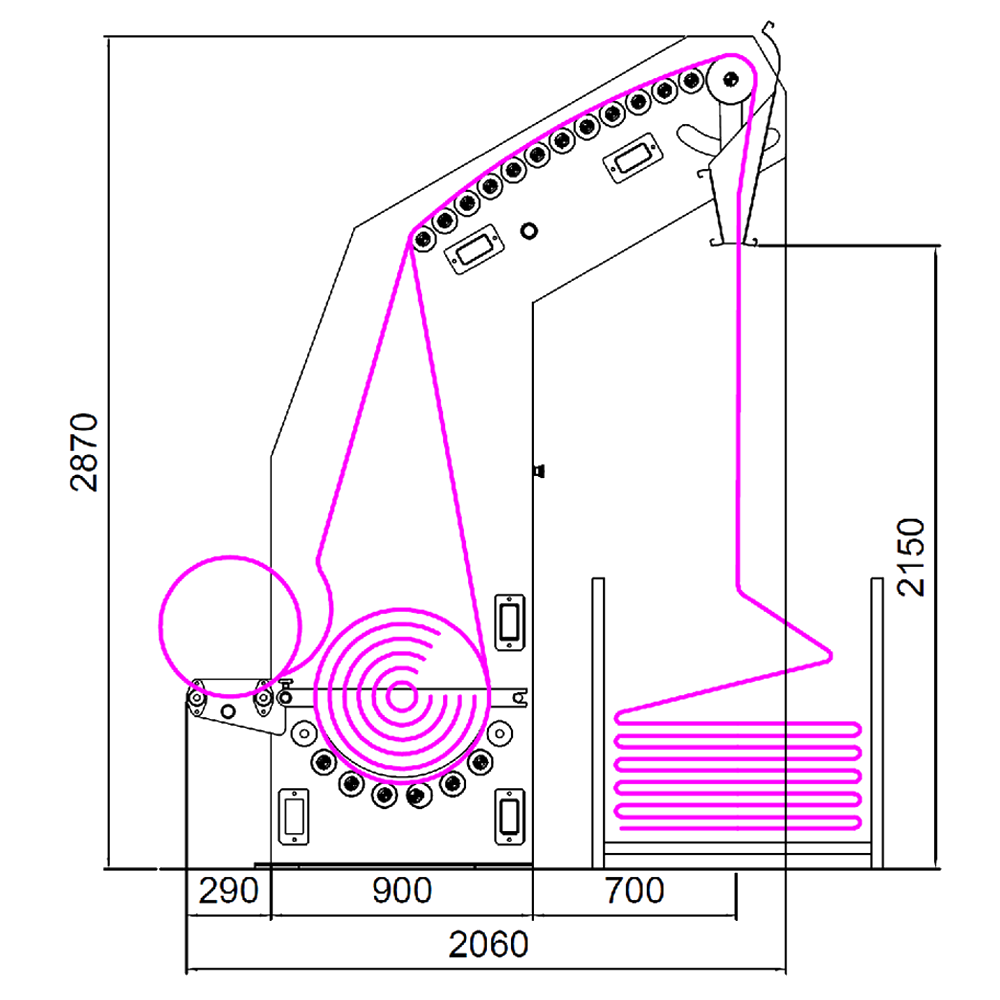

Built for Fast, Tension-Free Production
Technical configuration optimized for high-speed batching, tension-free handling, and efficient fabric plaiting workflows.
Working widthUp to 1200 mm
Alternative version2400 mm for reprocessing finished rolls or double-rope applications
Fabric entryRoll / plaited fabric
Fabric exitPlaited fabric
Max input roll diameter600 mm (1200 mm out of standard)
Speed0 to 150 m/min
ConfigurationVarious optional features
Material tensionComplete absence of tension
Automatic returnIncluded to facilitate sewing
Production output700 to 800 kg/hour with one operator
