Revoblade
800 kg/hour. No tension. No rivals.

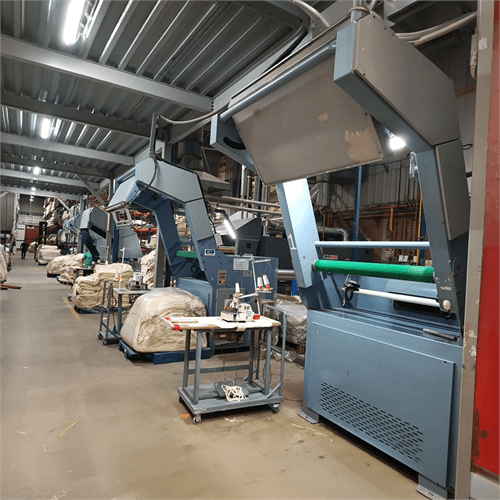

Machine designed to turn greige tubular fabric inside out before dyeing or brushing processes. Ensures high productivity with complete absence of tension. Capable of loading up to 200 kg on the tube and reaching production of 700 to 800 kg per hour with a single operator. Optional motorized spreaders are available to open the fabric before brushing.
Machine Overview

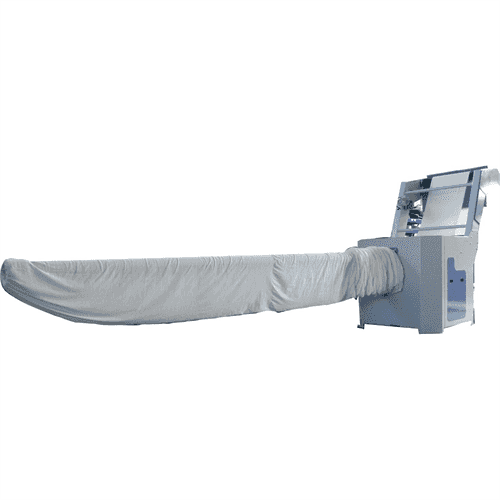

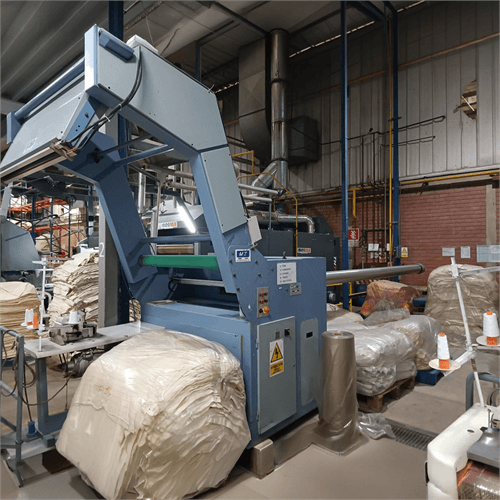

High-Speed Tubular Fabric Reversing
Engineered to reverse tubular fabric efficiently and without tension, preparing it for downstream processes such as dyeing or brushing.
Up to 800 kg/hour production
Speed up to 150 m/min
Specifications

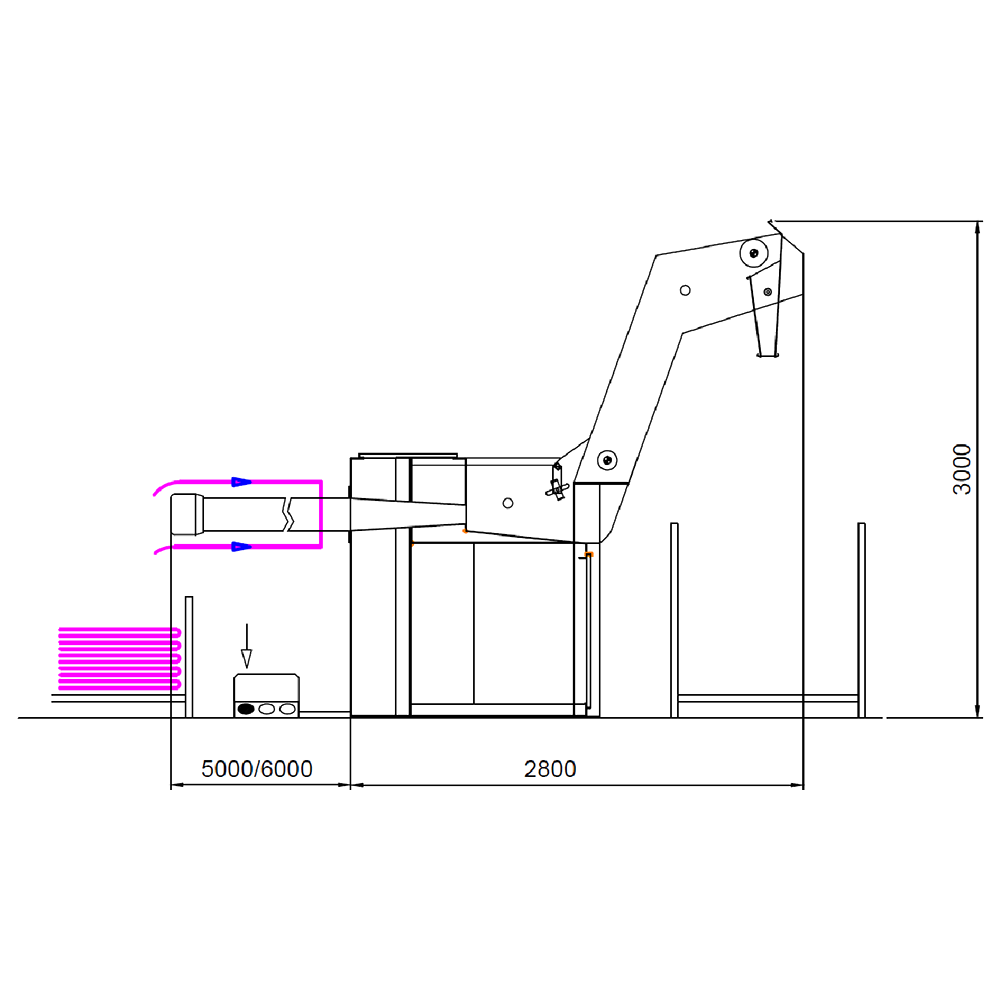

Built for Fast and Tension-Free Reversing
Technical configuration optimized for high-speed tubular fabric inversion with minimal handling stress.
Working widthUp to 1000 mm
Fabric entryRoll / plaited fabric
Fabric exitPlaited fabric
Max input roll diameter600 mm
Tube loading capacityUp to 200 kg
Production output700 to 800 kg/hour
Speed0 to 150 m/min
Loading speed5 to 300 m/min
ConfigurationVarious optional features
Optional spreading systemMotorized spreaders for opening fabric before brushing
