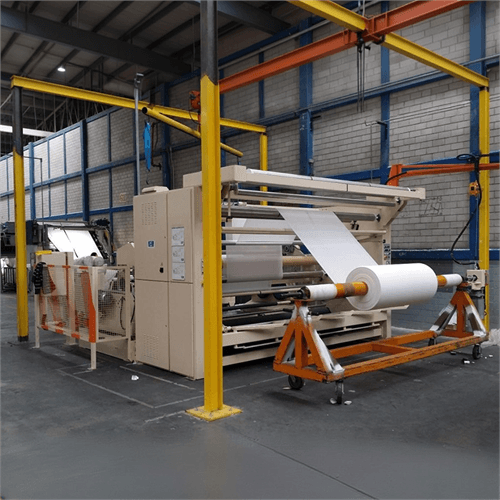

Beamflow
The best dyeing starts from the beam.
Beam winding machine designed for preparing dyeing beams before and after the dyeing process. Features electronic control of fabric tension and height, progressive compactness control, and the ability to wind beams of different heights. Supports recipe management with memory for repeatable production settings.
Machine Overview

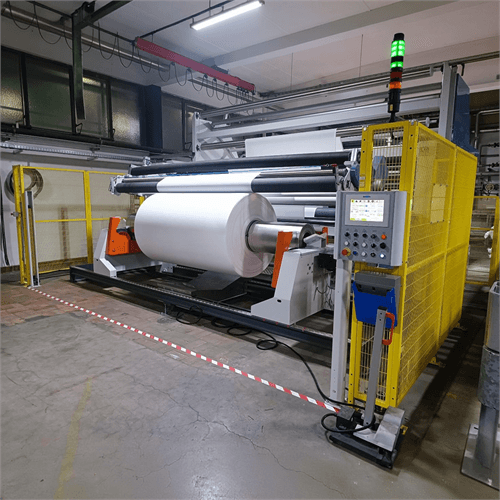

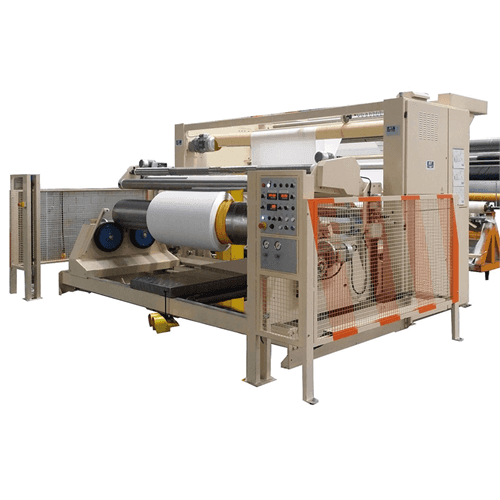

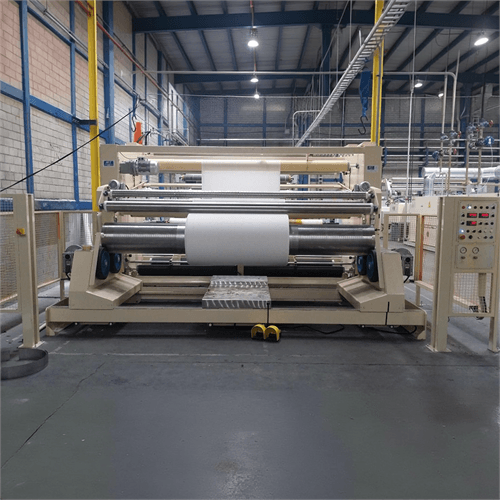

Precision Beam Preparation for Dyeing Processes
Engineered to deliver consistent beam quality through controlled tension, compactness, and repeatable settings for optimized dyeing results.
Speed from 5 to 60 m/min
Working width up to 4200 mm
Specifications

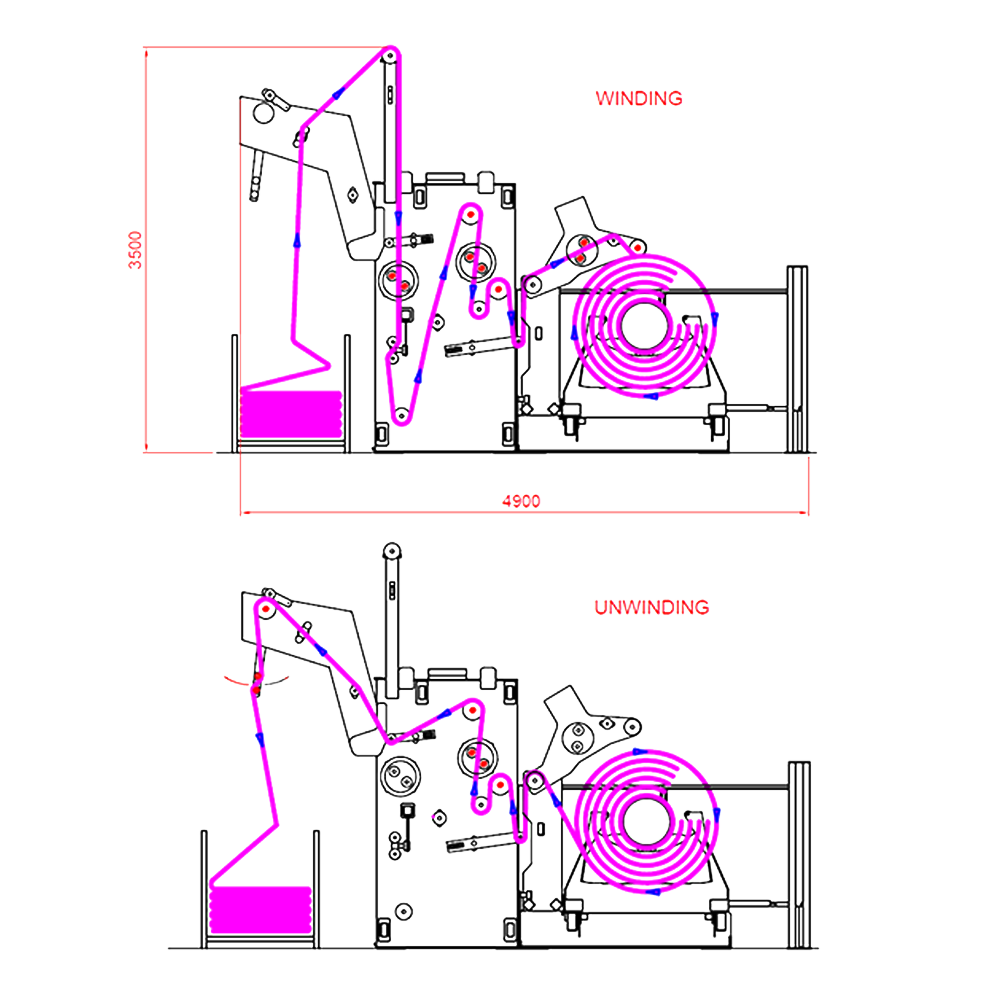

Built for Controlled Beam Winding
Technical configuration focused on precise beam formation, adaptable input handling, and optimized preparation for dyeing processes.
Working widthUp to 4200 mm
Fabric entrySmall roll / plaited fabric / large roll
Fabric exitDyeing beam
Max input roll diameter1800 mm
Max full beam diameter1200 mm
Max roll weight140 kg
Speed5 to 60 m/min
ConfigurationVarious optional features
Tension controlElectronic
Fabric height controlElectronic
Compactness controlProgressive
Recipe managementMemory-based settings
