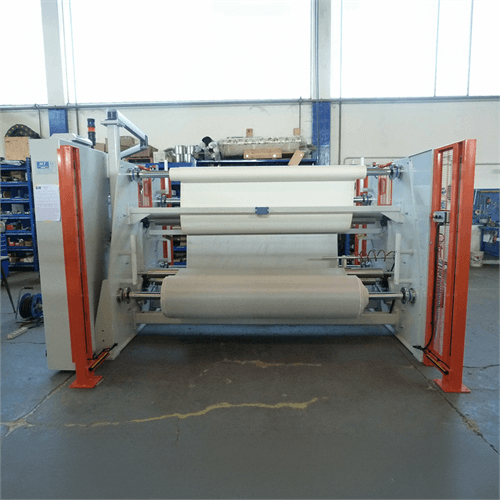

Spellicolatrice Peelwind
Machine used to peel and rewind one or more layers of material. It is a typical converting solution designed to handle multilayer materials such as plastic films, laminates, bonded materials, and technical textiles. Its role is to separate one layer from the rest of the structure in a controlled way and rewind it into rolls with consistent tension and quality.
Machine Overview

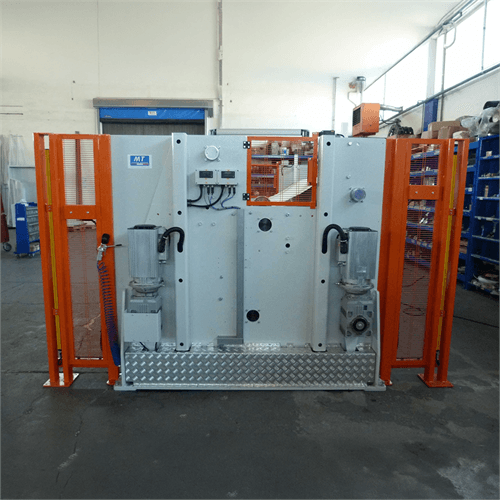

Controlled Layer Separation and Rewinding
Designed for converting multilayer materials by separating one or more layers with controlled tension and rewinding quality, supporting stable downstream processing.
Speed from 5 to 150 m/min
Working width up to 2500 mm
Specifications

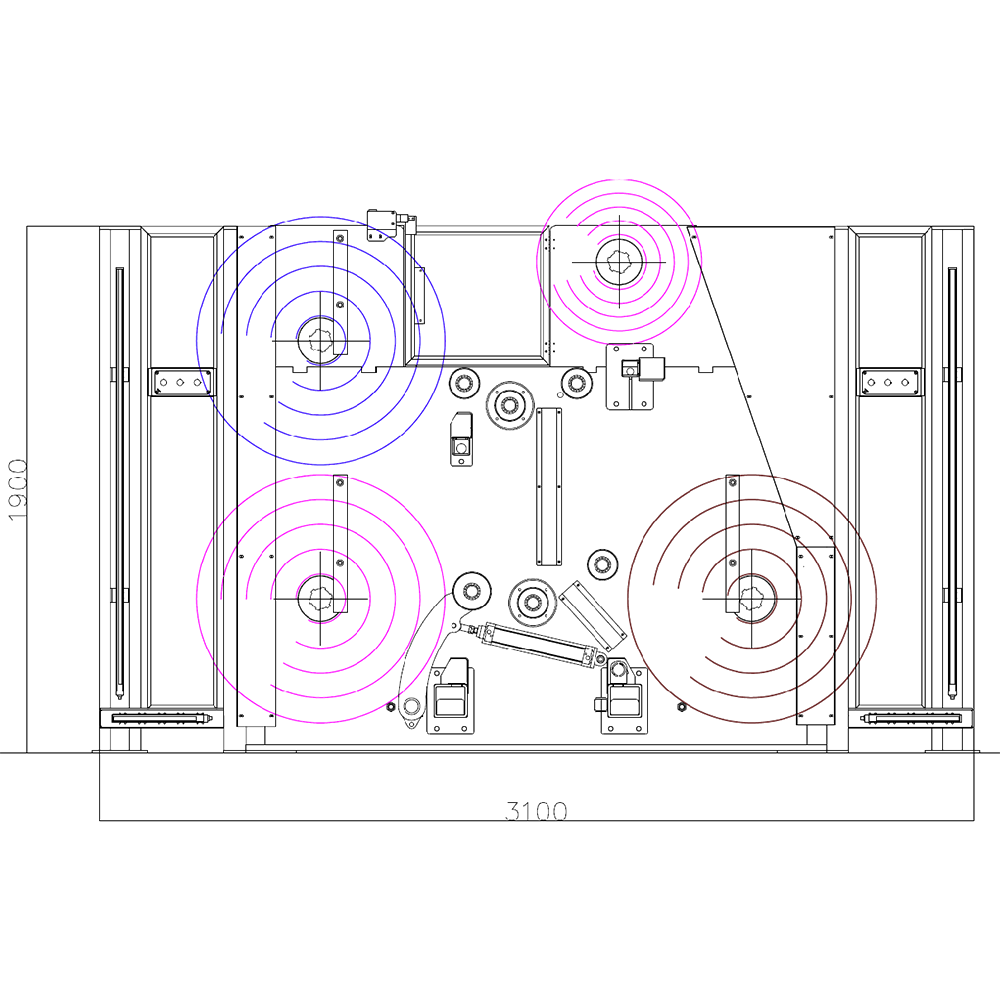

Built for Multilayer Converting
Technical configuration optimized for controlled peeling, stable rewinding, and precise handling of multilayer materials.
Working widthUp to 2500 mm
Mother roll diameter1200 mm
Output roll diameter600 mm
Speed5 to 150 m/min
ConfigurationVarious optional features
Main functionPeeling and rewinding one or more layers
Material structureMultilayer materials
Process controlControlled separation with consistent tension
