Rolltitan 1200
The giant that keeps rolling without pause.

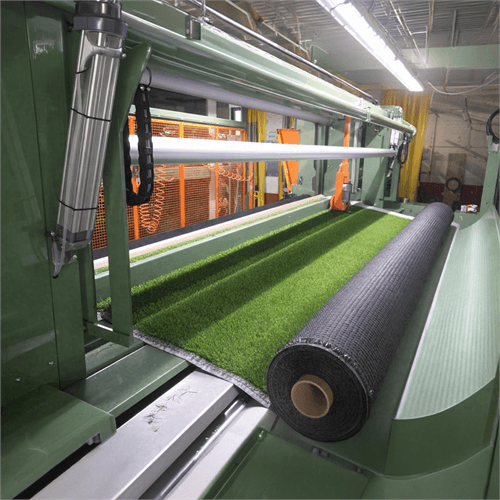

Winding system particularly suited for geotextiles, carpets, and artificial grass. The line is composed of a 100-meter accumulator, a machine for longitudinal and transverse cutting, and an automatic winder with the possibility of tube insertion. It features automatic tension control on the material and recipe memory for repeatable processing. Optional integrations include automatic marking for traceability with inkjet or laser, and full unloading automation with palletizing, wrapping, and labeling.
Machine Overview
Heavy-Duty Winding for Large-Format Technical Materials
Built for high-capacity non-textile production lines, combining accumulation, cutting, automatic winding, and advanced automation for demanding materials and wide formats.
Speed from 5 to 80 m/min
Working width up to 7000 mm
Specifications

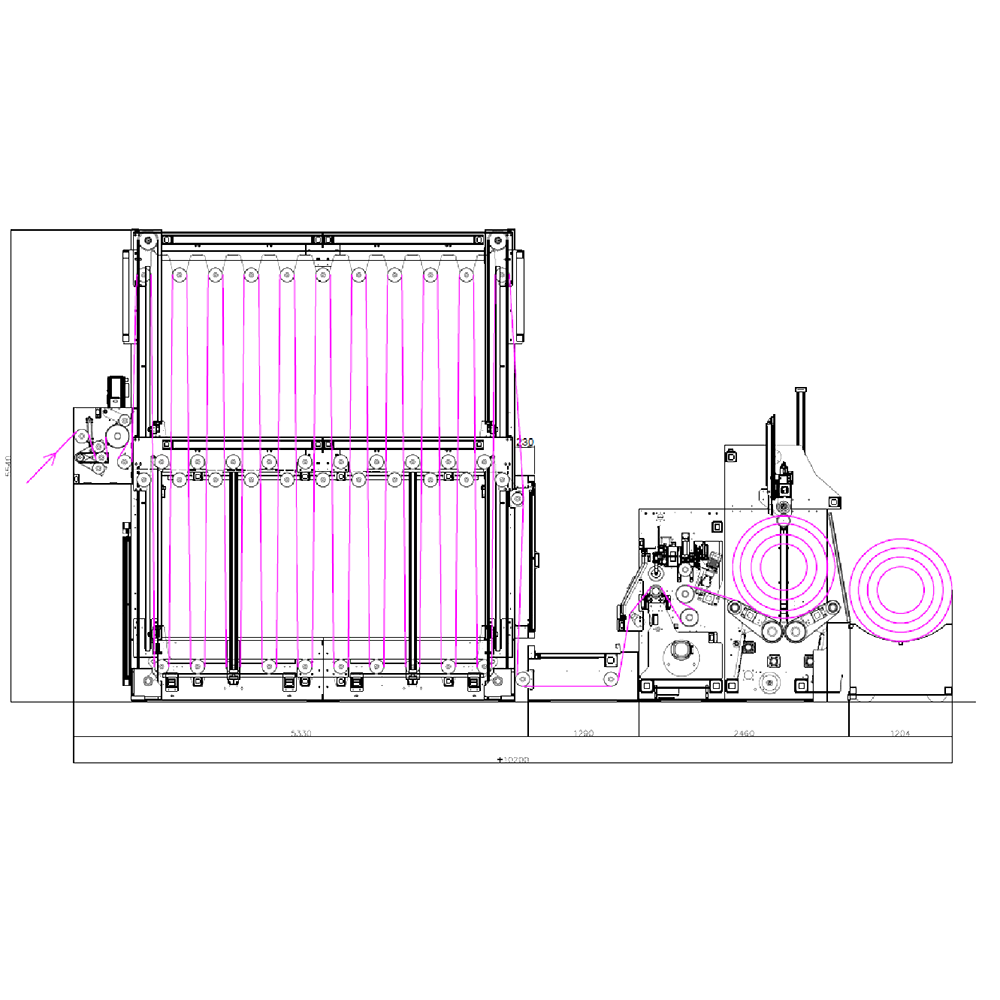

Built for Wide, Heavy, and Continuous Winding
Technical configuration designed for large-format materials, integrated cutting, controlled tension, and automated downstream handling.
Working widthUp to 7000 mm
Material entryProduction line
Output material diameter1200 mm
Minimum slit width800 mm
Max roll weight3000 kg
Speed5 to 80 m/min
Max material thickness5 mm
ConfigurationVarious optional features
Accumulator100 meters
Main process unitsLongitudinal cutting, transverse cutting, automatic winding
