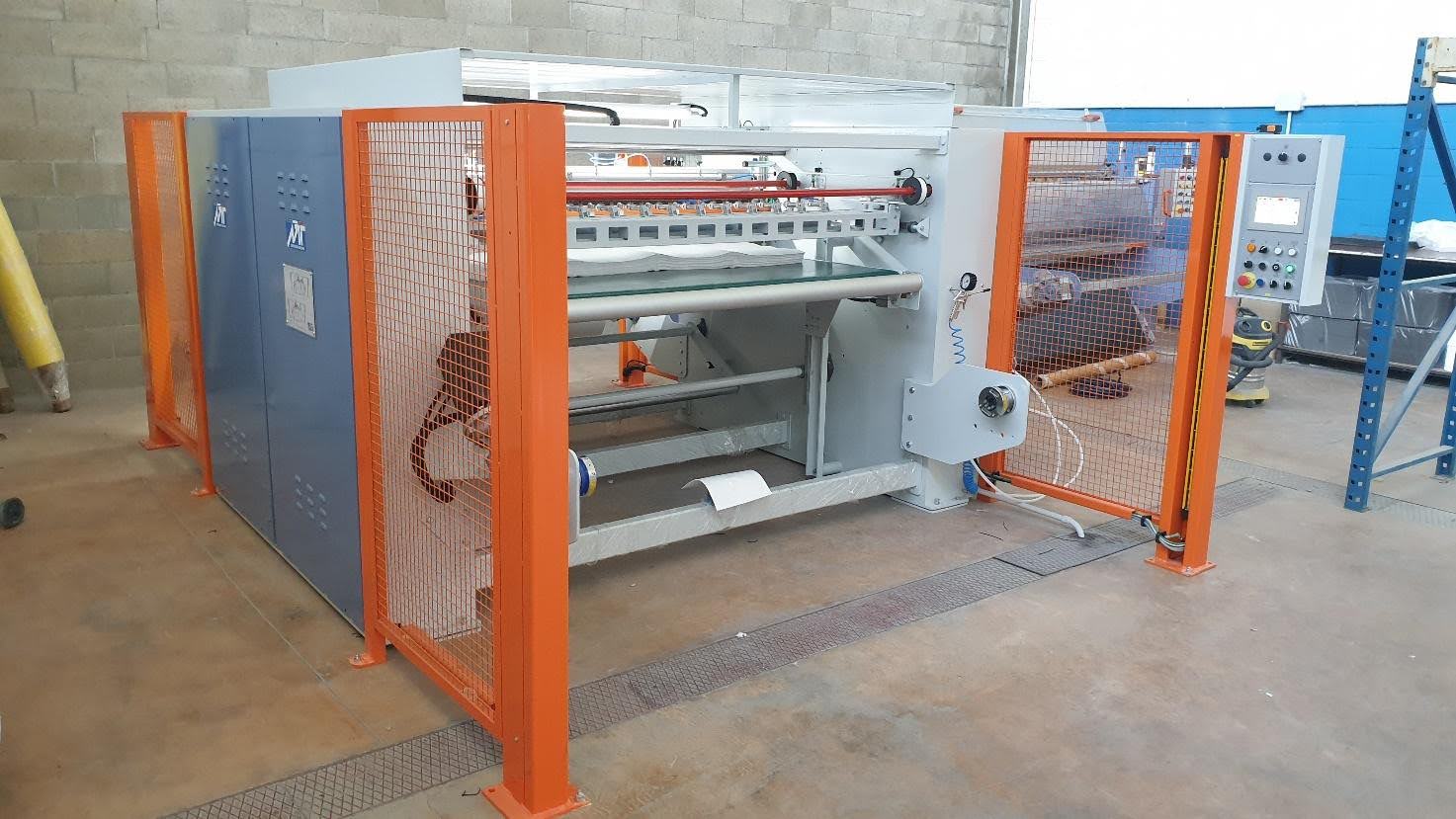

Minicut
Longitudinal. Transverse. Relentless.
Machine Overview

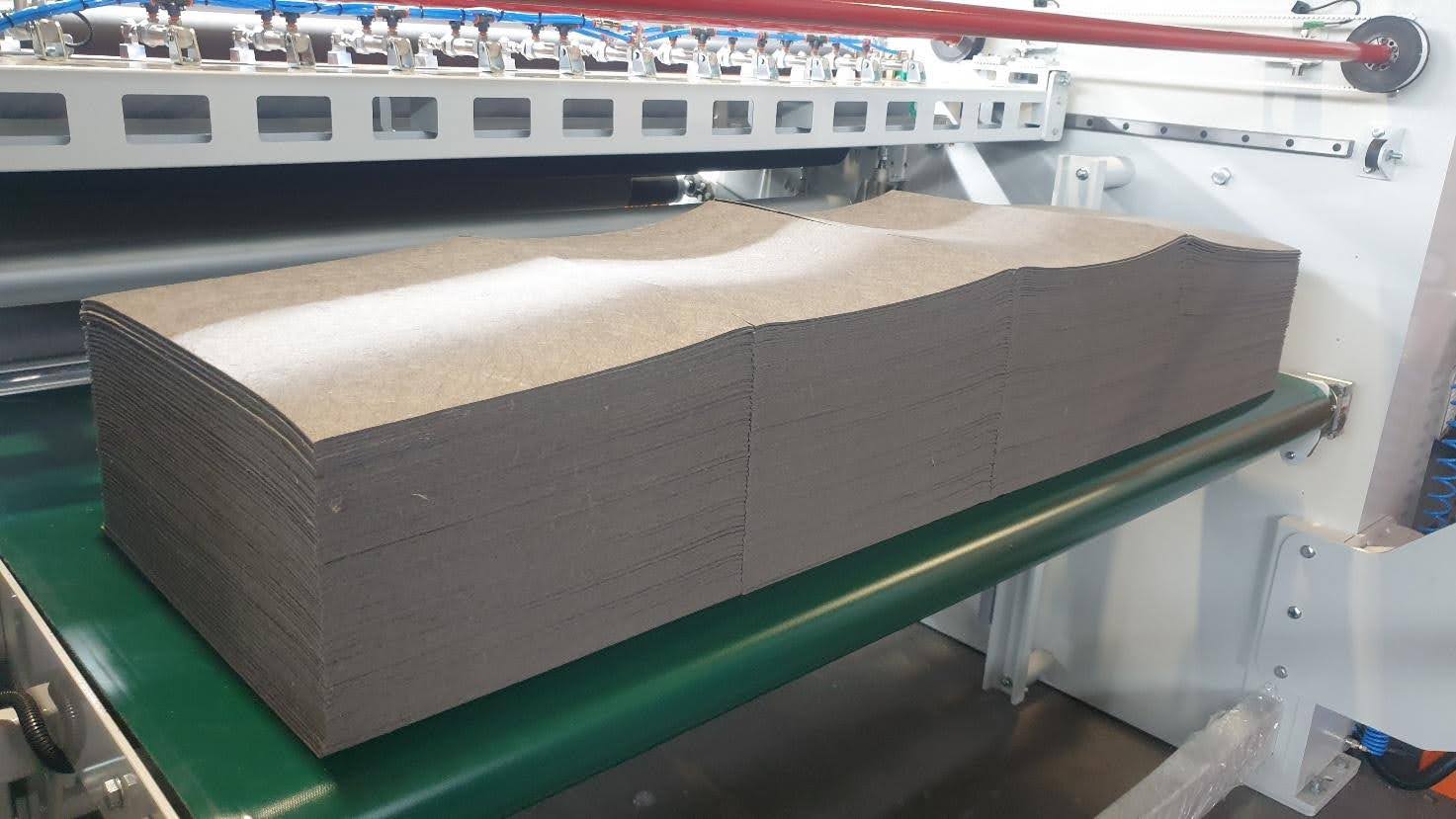

Compact Cutting for Sheets and Rewound Formats
Designed for precise longitudinal and transverse cutting, with the flexibility to produce sheets or rewound rolls across a range of technical materials.
Speed from 5 to 50 m/min
Working width up to 2000 mm
Specifications

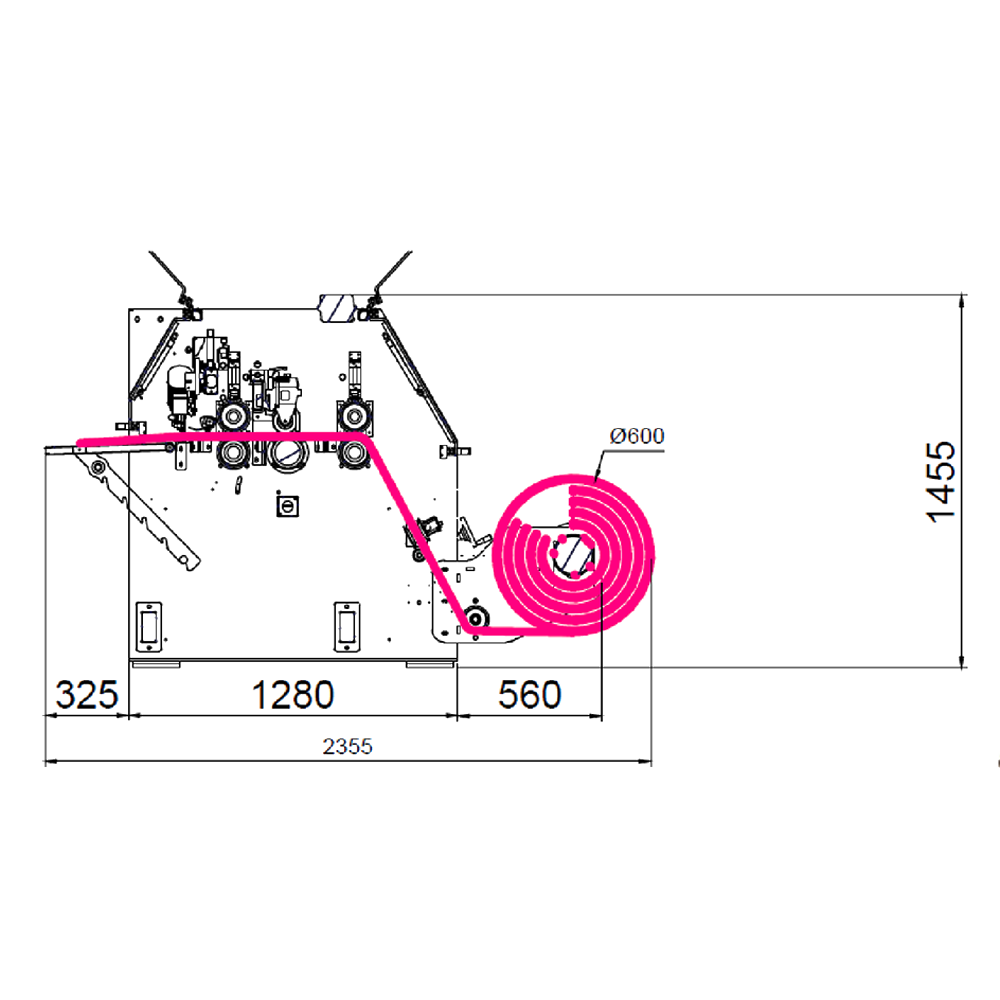

Built for Precise Slitting and Sheet Cutting
Technical configuration focused on flexible cutting formats, compact footprint, and stable handling of technical web materials.
Working widthUp to 2000 mm
Mother roll diameter600 mm
Output material diameter600 mm
Minimum slit width40 mm
Max mother roll weight150 kg
Speed5 to 50 m/min
Max stackable thickness500 mm
ConfigurationVarious optional features
Longitudinal cuttingPressure cutting
Transverse cuttingMotorized blade
